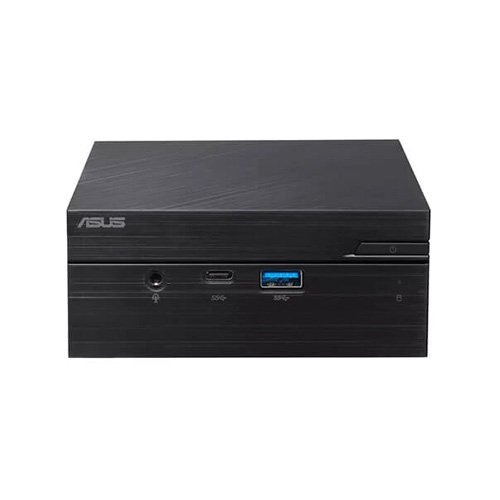

Asus PN51 Barebone Mini PC PN51-S1-B 1B WOC/ A5700U – 90MR00K1-M002E0 (AMD Ryzen 7 5700U Processor) with Keyboard & Mouse
Overview :
Mini PC PN51
Ultracompact computer with AMD Ryzen 5000 series mobile processor and support for quad 4K displays, with up to 64 GB DDR4 RAM, M.2 SSD, WiFi 6, Windows 10 Pro and dual USB 3.2 Gen 2 Type-C.
Easy modification, maximum possibilities
ASUS Mini PC PN51 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications – and is the worthy successor to the popular ASUS Mini PC 50. Featuring the latest AMD Ryzen™ 5000 mobile processor with Radeon™ graphics, plus support for high-speed 3200 MHz DDR4 memory, Mini PC PN51 is ready for demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won’t fit – from digital signage to home-theater setups.
Performance
ASUS Mini PC PN51 is powered by the latest AMD Ryzen 5000U mobile processor. Compared with traditional same-tier mobile processors this delivers a whole-system performance uplift of up to 20.2%, and an up to 58.2% improvement for daily multitask computing – ensuring smooth operations for everything you do.
4K resolution and quad-display support
ASUS Mini PC PN51 supports up to four displays with 4K resolution through HDMI, DisplayPort over dual USB-C and a user-configurable port*, with no restriction** on the combination.
Hyper – realistic 8K support
ASUS Mini PC PN51 also supports stunning 8K UHD through DisplayPort 1.4* or Type-C DisplayPort, for detail that’s 4 times greater than 4K or a remarkable 16X higher than traditional Full HD output. Specifically, PN51 will pump 8K visuals at up to 30 Hz via a single DisplayPort and at up to 60 Hz through DisplayPort Dual-Mode (DP )**, bringing every image to life in breathtaking style.
Serious graphics
ASUS Mini PC PN51 features class-leading graphics performance, powered by AMD Radeon™ graphics. In fact, PN51’s 6489 score in 3DMark 11 thrashes mini PCs powered by traditional CPUs by over 170%.
Ready for any scenario
ASUS Mini PC PN51 supports up to four video outputs, so it offers flexibility to handle all manner of multi-display setups. You’re also free to choose your own combination of ports, making PN51 suitable for almost any conceivable display scenario.
Diverse applications
With support for up to four 4K displays*, ASUS Mini PC PN51 can be used to build high-resolution signage walls at lounges, halls, exhibitions and retail stores, all powered from just one device – saving on both cost and maintenance. As well, PN51’s quad-display, microphone-array and IR-sensor support makes it easy to share information in workplaces, offices or conference rooms.
Modern, space-saving chassis
With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN51 easily blends into home, office and retail environments. Compact and lightweight at 115 x 115 x 49 mm, and with a mere 0.62-liter volume, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution.
Efficient SSD heatsink
ASUS Mini PC PN51 also benefits from an integrated SSD heatsink that keeps the temperate of the M.2 drive below 70° C at idle. This helps ensure durability and reliability, potentially saving on maintenance costs.
High-speed connectivity
ASUS Mini PC PN51 provides comprehensive connectivity with multiple ports, including dual USB 3.2 Gen 2 Type-C ports with DisplayPort 1.4 support and a configurable port* to support legacy devices, additional displays or multiple network connections.
Seamless media experiences
ASUS Mini PC PN51 supports HDMI® CEC and has a built-in IR sensor*, allowing you to manage almost all your media devices, from audio and video playback to menu navigation, via a single remote control.
Technical Detail
Brand : Asus
Modal : PN51-E1 R7
Technical Spec
CPU
AMD Ryzen™ 7 5700U Processor 1.8GHz
(12M Cache, up to 4.3GHz)
Chipset
Integrated
TPM module on board (on selected model)
Graphics
Integrated – Radeon™ Vega Graphics
Wireless Data Network
Wi-Fi 6, Bluetooth 5.0, 2*2 (Barebone SKU)
Wi-Fi 6, Bluetooth 5.0, 2*2
LAN
10/100/1000 Mbps
2.5G LAN, Realtek® RTL8125B-CG
Audio
Realtek® ALC3251 or ALC3236-VB2 HD Audio CODEC (optional)
Side(Front) I/O Ports
1 x USB 3.2 Gen2 Type-C(w/ quick charge, DP output), 1 x USB3.2 Gen1 Type-A, 1x 4-in-1 Card Reader, 1 x Consumer Infrared Sensor, 2 x Microphone Array, 1x Audio Jack(optional), 1 x K-Lock(side)
Back I/O Ports
1 x HDMI, 1 x USB 3.2 Gen2 Type-C(w/ DP output), 1 x Configurable Port (option: VGA/COM/DP/LAN), 2 x USB 3.2 Gen1 Type-A, 1 x RJ45 LAN, 1 x DC-in
Configurable I/O
1 x Display1.4 Port
1 x Display1.2 Port
Speaker
No
Power Supply
19Vdc, 3.42A, 65W Power Adapter
19Vdc, 4.74A, 90W Power Adapter
Dimensions (W x D x H)
115 x 115 x 49 mm
Weight
700g (include 2.5″ HDD)
Color
Black
Accessories
USB Keyboard & Mouse (Optional)
Certificates
BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
