ASUS ROG Strix 850G 850W 80 PLUS Gold Modular Power Supply
Overview :
- ROG heatsinks cover critical components, delivering lower temperatures and reduced noise.

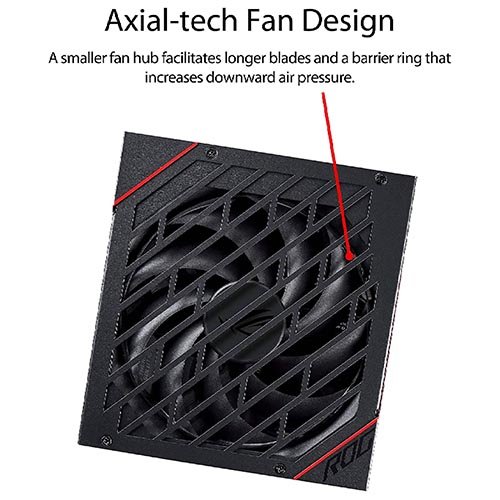

- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- 0dB Technology lets you enjoy light gaming in relative silence.

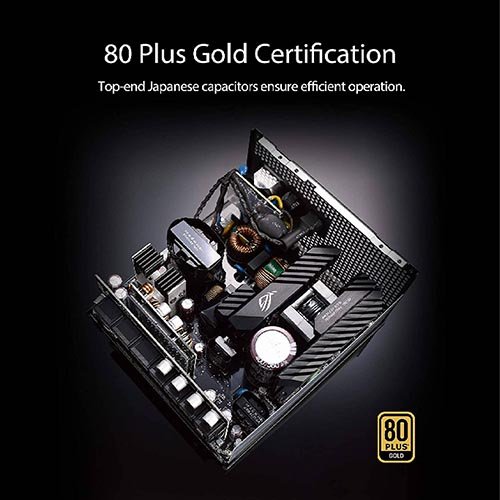

- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.

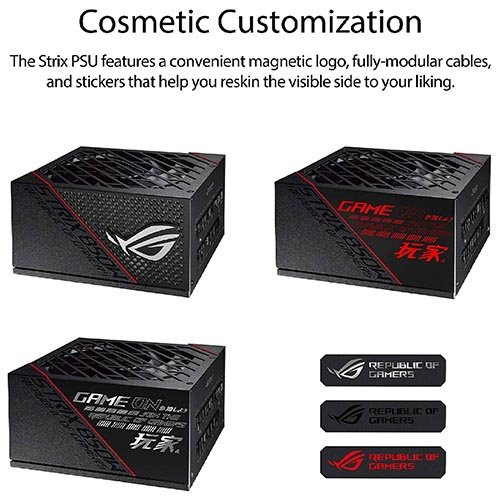

- White Edition Design include a white case, modular cables, stickers, and magnets.

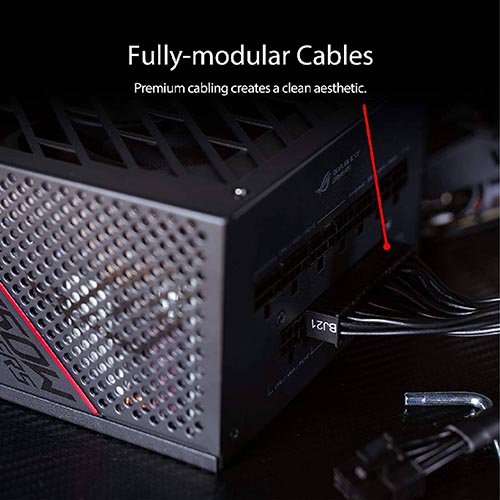

- Fully modular cables keep your rig neat and tidy.
- 10-year warranty included.
Keep components powered with the quiet Republic of Gamers Strix 850G 850W 80 PLUS Gold Modular Power Supply in white from ASUS. Featuring a single 12V rail, this 850W ATX power supply provides one motherboard, two CPU, six PCIe, eight SATA, and six 4-pin peripheral connectors. Certified 80 PLUS Gold, the ROG Strix 850G is also capable of 0dB operation at below 40% TDP. All cables are fully modular, and the motherboard, CPU, and PCIe cables all feature embedded capacitors to reduce voltage ripple. In addition to a motherboard, two CPU, three PCIe, two SATA and two 4-pin cables, and a power cable, this PSU also comes with two ROG badges, a logo magnet, and three ROG labels for customizing its look.
ROG Heatsinks
Axial-Tech Fan Design
Dual Ball Fan Bearings
0dB Technology
White Edition Design
Specification :
| Connectivity | |
| Total Connectors | 1 x 20 4-Pin ATX Motherboard |
| 2 x 4 4-Pin EPS CPU | |
| 6 x 6 2-Pin PCIe | |
| 8 x 15-Pin SATA | |
| 6 x 4-Pin Peripheral / Molex | |
| Cable Design | Modular |
| ATX Connector Distance | 24″ / 610 mm |
| EPS Connector Distances | 39.4″ / 1000 mm |
| Electrical | |
| Total Wattage | 850 W |
| Number of 12 V Rails | 1 |
| Combined Power for 12 V | 840 W |
| Max Load for 12 V | 70 A |
| Combined Power for 3.3/ 5 V | 100 W |
| Max Load for 3.3 V | 20 A |
| Max Load for 5 V | 20 A |
| Max Power for 5 Vsb | 15 W |
| Max Load for 5 Vsb | 3 A |
| Max Power for -12 V | 3.6 W |
| Max Load for -12 V | 0.3 A |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| General | |
| Efficiency Rating | 80 PLUS Gold |
| Cooling | |
| Fan Size | 135 mm |
| Bearing Type | Ball |
| Physical | |
| Form Factor | ATX |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection |
| Certifications | RoHS, as per Manufacturer |
| Dimensions | 0.63 x 0.34 x 0.59″ / 16 x 8.6 x 15 mm |
| Weight | 0 lb / 1.83 g |
