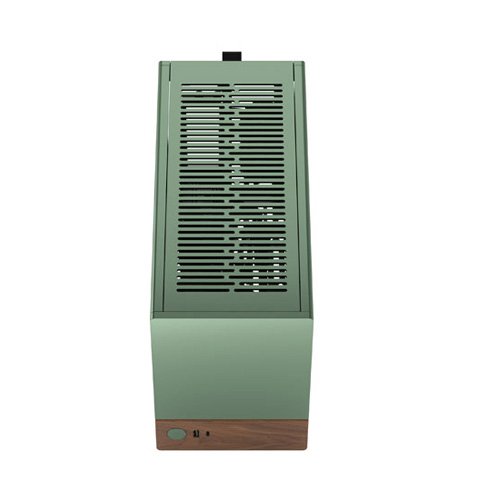

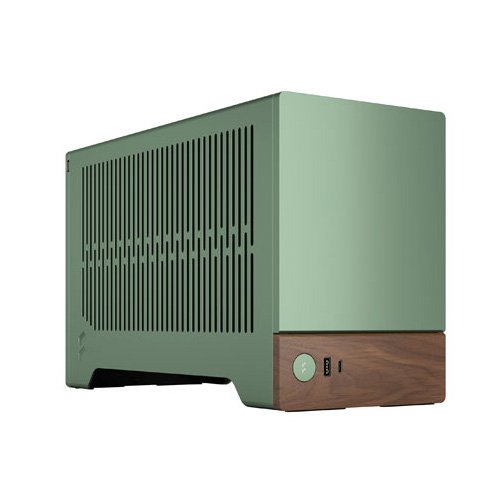

Fractal Design Terra Mini-ITX Cabinet Jade FD-C-TER1N-03
Overview :
Terra
Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 riser cable and features a stepless slidable central wall for build flexibility, providing space for a powerful GPU up to 322 mm in length.
Install your choice of powerful GPU up to 322 mm in length, in a space-saving 10.4 L case (excluding feet)
Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
Crafted to elevate
Designed and engineered to enhance small form factor gaming
Elegantly crafted
Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
Make the most of natural airflow through the ventilated top, side and bottom panels
Engineered for SFF gaming
Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case (excluding feet)
Get a head start on your build with the included PCIe 4.0 riser cable
Store up to two SSDs in the dedicated 2.5” drive mounts
Easily accessible
Slide open the top with an integrated tab and lift open the fully removable side panels for easy access to your components
Choose your accent
The Terra is available in your choice of three distinct anodized aluminum versions to perfectly complement and elevate your gaming space
Adjustable motherboard plate
Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, movable central wall
Slide to strike the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other
Front-facing I/O
The solid walnut front panel features an aluminum power button and two USB ports for connecting devices, including one USB Type-C 20Gbps
Natural material
Enjoy a naturally unique finish, with an individual front panel cut from solid walnut
Highly transportable
Features the ability to lock the top and side panels for safer transportation of your build
Spcifications
Brand : Fractal Design
Model : FD-C-TER1N-03
Technical Spec
Dedicated 2.5″ drive mounts : 2 (included)
Expansion slots : 3 (Max GPU Mode), 2 (Max CPU-Cooler height mode)
Front interface : 1x USB Type-C 20Gbps (USB 3.2 Gen 2×2), 1x USB Type-A 5Gbps (USB 3.0), Power Button
Total fan mounts : 1x 120 mm
Bottom fan : 1x 120 mm
Tool-less push-to-lock : Both side panels and top panel (can also be locked with screws)
Compatibility :
Motherboard compatibility : mITX
Power supply type : SFX-L/ SFX
PSU max length : 130 mm
Side radiato : 1x 120mm (121 mm wide if max 200 mm GPU and no SSDs)
GPU max length : 322 mm
GPU max width (if GPU height is lower than 131 mm) :
72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler)
GPU max width (if GPU height 131-145mm) :
62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler)
GPU max height :
145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler)
*CPU cooler max height :
48 mm (Configured for Max GPU) / 77 mm (Configured for Max CPU-Cooler)
Case dimensions (LxWxH) : 343 x 153 x 218 mm
Package dimensions (LxWxH) : 394 x 215 x 292 mm
Net weight : 3.1 kg
Gross weight : 4.0 kg
