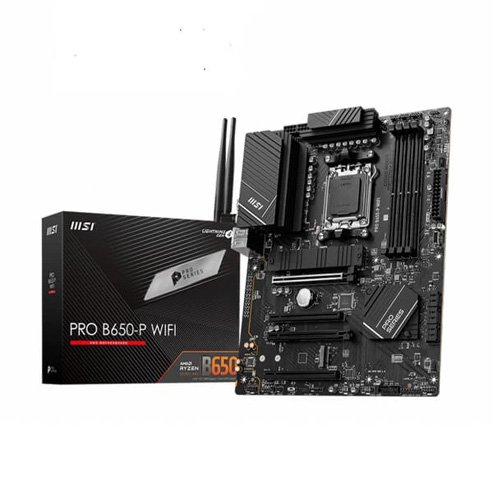

MSI Pro B650-P WIFI Motherboard PRO-B650-P-WIFI
Overview :
Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specification :
| Chipset | AMD B650 |
| CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB |
| Memory Support DDR5 6000 (OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 6000 MHz | |
| • 1DPC 2R Max speed up to 6000 MHz | |
| • 2DPC 1R Max speed up to 6000 MHz | |
| • 2DPC 2R Max speed up to 6000 MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports AMD EXPO | |
| Onboard Graphics | 1x HDMI™ |
| Support HDMITM 2.1, maximum resolution of 4K 60Hz* | |
| 1x DisplayPort | |
| Supports DP 1.4, maximum resolution of 4K 60Hz* | |
| 1x VGA | |
| Support VGA, maximum resolution of 1920×1200 60Hz | |
| EXPANSION SLOT | 1x PCI-E x16 slot |
| 2x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| Storage | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| 2x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| LAN | Realtek® 8125BG 2.5G LAN |
| Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 3x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 2x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 3.2 Gen1 Type A ports | |
| 1x USB 3.2 Gen2 Type C ports | |
| LED FEATURE | 4x EZ Debug LED |

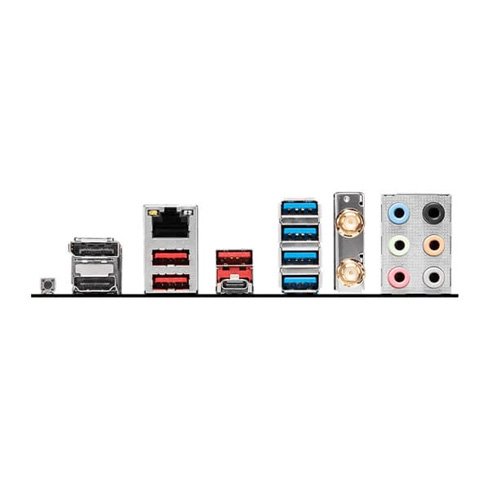

| BACK PANEL PORTS | |
| DisplayPort | |
| VGA | |
| Keyboard / Mouse | |
| USB 2.0 | |
| 2.5G LAN | |
| Audio connectors | |
| Flash BIOS Button | |
| HDMI™ | |
| USB 2.0 | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | mATX |
| 243.84mmx243.84mm | |
| Warranty | 3 Years |
