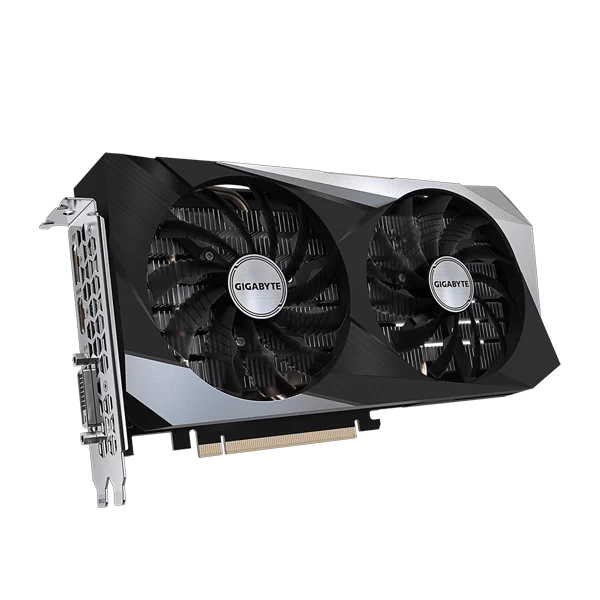

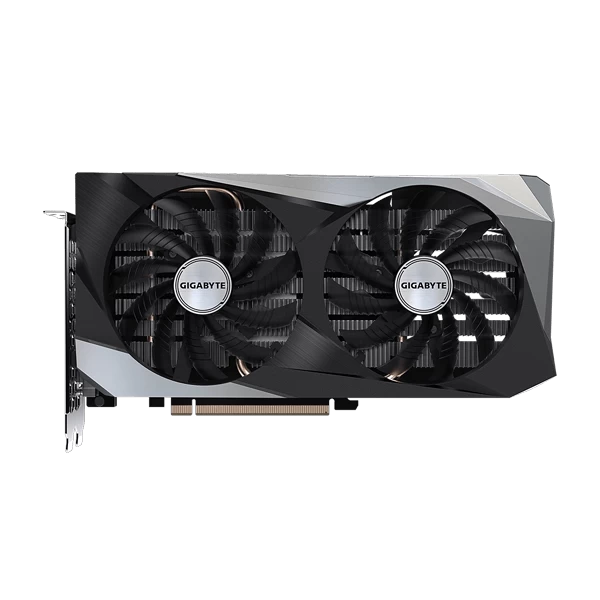

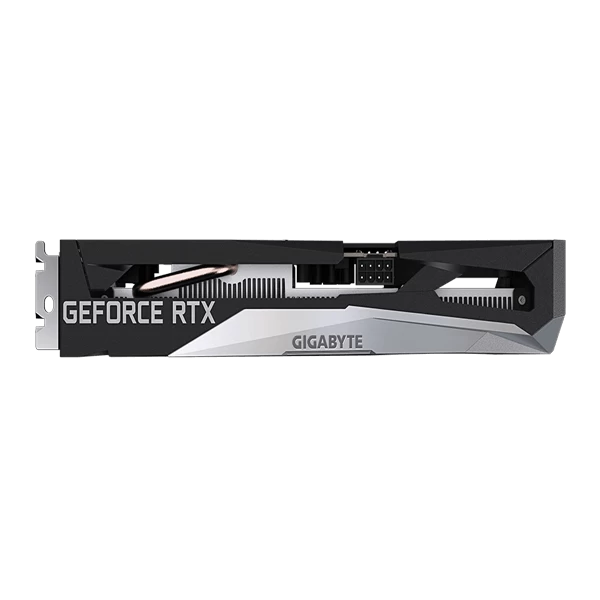

Gigabyte GeForce RTX 3050 WINDFORCE OC 8G Graphic Card GV-N3050WF2OC-8GD
Overview :
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 100mm unique blade fans, the heatpipe directly touches the GPU, alternate spinning, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

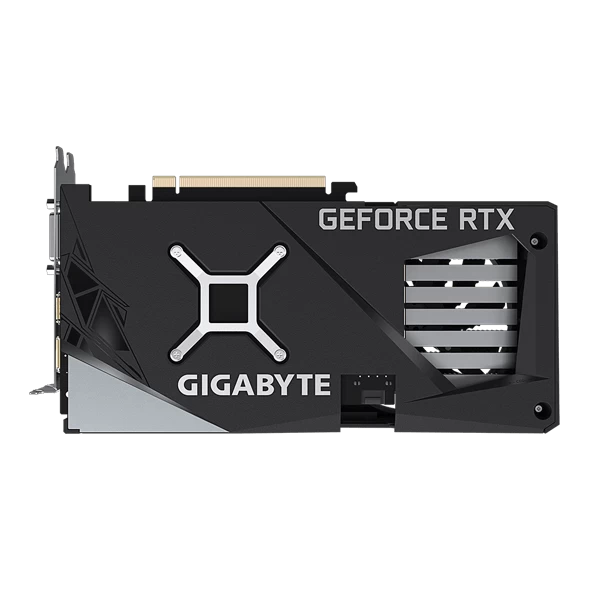

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Technical Details
Brand : Gigabyte
Model : RTX 3050
Technical Spec
Graphics Processing : GeForce RTX™ 3050
Core Clock : 1792 MHz (Reference Card: 1777 MHz)
CUDA® Cores : 2560
Memory Clock : 14000 MHz
Memory Size : 8 GB
Memory Type : GDDR6
Memory Bus : 128 bit
Card Bus : PCI-E 4.0
Digital max resolution : 7680×4320
Multi-view : 3
Card size : L=243.6 W=124.8 H=40.2 mm
PCB Form : ATX
DirectX : 12 Ultimate
OpenGL : 4.6
Recommended PSU : 450W
Power Connectors : 8 pin*1
Output : DP1.4*1
HDMI 2.1*1 : Dual-Link DVI-D*1
Accessories : Quick guide
