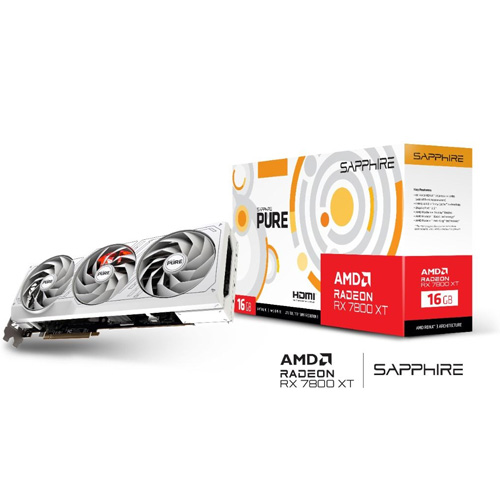

Sapphire PURE AMD Radeon RX 7800 XT 16GB Graphic Card 11330-03-20G
Overview :
Digital Power Design
SAPPHIRE PURE AMD Radeon™ RX 7000 Series are designed with digital power which provides accurate power control and excellent power efficiency
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Specifications
Stream Processors : 3840
Compute Units : 60 CU (with RT AI Accelerators)
Infinity Cache : 64MB
Ray Accelerators : 60
Memory Size/Bus : 16GB/256 bit GDDR6
Memory Clock : 19.5 Gbps Effective
Displays : Maximum 4 Displays
Resolution : HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320
Interface : PCI-Express 4.0 x16
Output
2x HDMI
2x DisplayPort
BIOS Support
UEFI
Game Index
4K
Sapphire Features
Premium Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipe
Intelligent Fan Control
Precision Fan Control
Metal Backplate
Red LED SAPPHIRE Logo
Two-Ball Bearing Fans
Angular Velocity Fan Blade
TriXX Supported
TriXX Boost
Accessories Bundled
Graphics Card Supporter
AMD Features
AMD RDNA™ 3 Architecture
60 AMD RDNA™ 3 Compute Units
64MB AMD Infinity Cache™ Technology
DisplayPort™ 2.1 Support
AMD Radiance Display™ Engine
16GB GDDR6 on 256-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ Super Resolution technology
Microsoft® DirectX® 12 Ultimate Support
Microsoft® DirectStorage Support
Vulkan® Optimized
AMD Smart Technologies
AMD Software: Adrenalin Edition™
AMD Noise Suppression
AMD Privacy View
AMD Radeon™ Super Resolution technology
AMD Link
AMD FreeSync™ Technology
Cooling
3 Fans
Form Factor
2.5 slot, ATX
Dimension: 320(L)X 128.75(W)X 52.57 (H)mm
Power Consumption
270W Total Board Power
OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
Minimum 700 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
