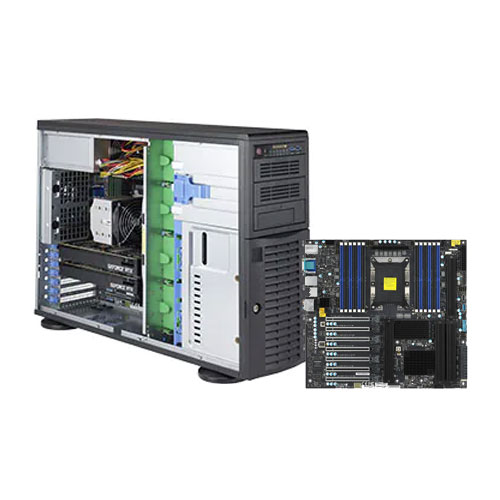

Graphic Server / Workstation 39TSGS
Product Overviews:
Offers high-performance PCs that are designed to target Graphic Workstations suitable for AI, VDI and Blockchain.
PRIME ABGB Workstations are purpose-built, quiet, energy-efficient and optimised to increase profitability as well as workflow productivity.
Specification :
| Form Factor | 4U Rackmountable / Tower |
| Chipset | Intel® C621 chipset |
| Processor | Single Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡ Intel Xeon 4210R 10Core 2.4ghz *1 |
| Memory | 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM 32GB DDR4 2666 *2 |
| Network Controller | 1x 10GBase-T and 1x 1GbE LAN ports |
| Storage Controller | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Drive Bays | 8 Hot-swap 3.5″ SAS3/SATA3 drive bays (SATA3 default) 3x 5.25″ drive bays 4800GB Enterprise SATA Class *1 |
| Expansion Slots | 4 PCI-E 3.0 x16 slots, 3 PCI-E 3.0 x8 (in x16 slot) M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1 Form Factor: 2242/2260/2280/22110 Key: M-Key, M.2 support RAID 0, 1 (up to RAID 5, 10), VROC key is required for RAID1 |
| Validated GPU / FPGA | A10/A16/A40/A30/A100/RTXA4000/RTX A5000/RTX A6000 /RTX A8000 RTX A4000 16GB Graphiccard 1nos |
| I/O Ports Back | 6 USB 3.1 Gen1 ports (4 rear, 2 headers) 4 USB 3.1 Gen2 ports (1 rear Type A, 1 rear Type C, 1 Type A header, 1 Type C header) 2 USB 2.0 ports (2 headers, Type A) |
| I/O Ports Front | Power On/Off button System Reset button 2 front USB 3.0 Ports |
| System Management | ASPEED AST2500 7.1 channel HD Audio by Realtek ALC888S 2 COM ports (1 rear, 1 header) 1 TPM 2.0 Header |
| Power Suppply | 1000/1200W Multi-output Power Supply Platinum Level Certified |
| Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Dimensions (DxWxH) | 648mm x 178mm x 452 mm |
| Estimated Weight | 71 lbs (32.2 kg) |
| OS Support | Windows Server 2016/Ubuntu 18.04 LTS /Windows Server 2019/RHEL 8.0 |
| Warranty | 3 year |
Terms & Conditions
- Prices is inclusive of taxes
- Freight as per actuals
- Warranty 3 year
- Payment 100% advance
- Delivery time 2-4 weeks
- Price as per Current $ price, will change based on Dollar Fluctuation
- Price Valid for 1 weeks
