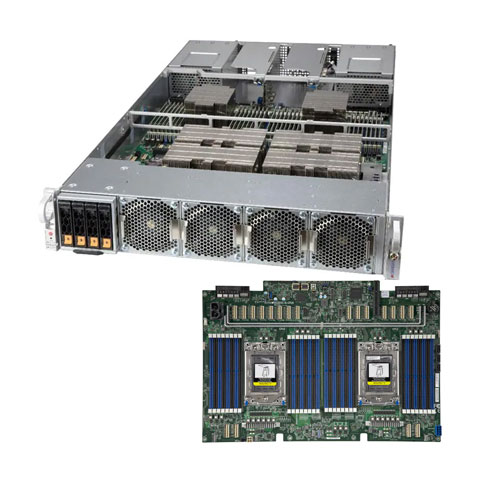

Graphic Server / Workstation 69TRD2G
Product Overviews:
Offers high-performance PCs that are designed to target Graphic Workstations suitable for AI, VDI and Blockchain.
PRIME ABGB Workstations are purpose-built, quiet, energy-efficient and optimised to increase profitability as well as workflow productivity.
Specification :
| Form Factor | 2U Rackmountable |
| Chipset | System on Chip (SoC) |
| Processor | Dual AMD EPYC™ 7003/7002 Series Processors |
| (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ | |
| Technology requires BIOS version 2.3 or newer) | |
| PSE-ROM7402-0046 *2 | |
| Cooling System | 4 Hot-swap heavy duty fans |
| Memory | 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs |
| 3200MHz ECC DDR4 SDRAM | |
| 32GB DDR4 3200MHZ *16 | |
| Network Controller | 2x 10GBase-T LAN ports |
| Storage Controller | 4 SATA3 (6Gbps) ports |
| Drive Bays | 4 Hot-swap 2.5″ drive bays (SATA/NVMe Hybrid or SAS with optional HBA) |
| 1.92TB SATA SSD *4 | |
| Expansion Slots | 4 PCI-E Gen4 x16 (LP) slots – supporting HGX A100 4-GPU’s 1:1 connection |
| to 4 NICs | |
| 1 PCI-E Gen 4 x8 (LP) slot | |
| Validated GPU / FPGA | HGX A100 4-GPU 40GB/80GB SXM4 Multi-GPU Board |
| HGX A100 4-GPU 40GB | |
| I/O Ports Back | 2 USB 3.0 ports (rear), 1 VGA Connector (rear) |
| Others | 1 COM port (header), 1 TPM 2.0 (header) |
| System Management | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| ASPEED AST2600 BMC | |
| Chassis Features | Supports HGX A100 4-GPU 40GB (HBM2) or 80GB(HBM2e) with NVLink |
| GPU interconnect and PCI-E Gen4 host CPUs | |
| Power Suppply | 2x 2200W Platinum Level power supplies with Smart Power Redundancy |
| Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| Dimensions (DxWxH) | 830 x 437 x 89 (mm) Chassis |
| Estimated Weight | Net Weight: 78.5 lbs (35.6 kg) |
| Gross Weight: 88.5 lbs (40.1 kg) | |
| OS Support | RHEL /Vmware/Ubuntu/SuSE/Oracle |
| Warranty | 3 year |
Terms & Conditions
- Prices is inclusive of taxes
- Freight as per actuals
- Warranty 3 year
- Payment 100% advance
- Delivery time : 01 Stock ready
- Price as per Current $ price, will change based on Dollar Fluctuation
- Price Valid for 1 weeks
