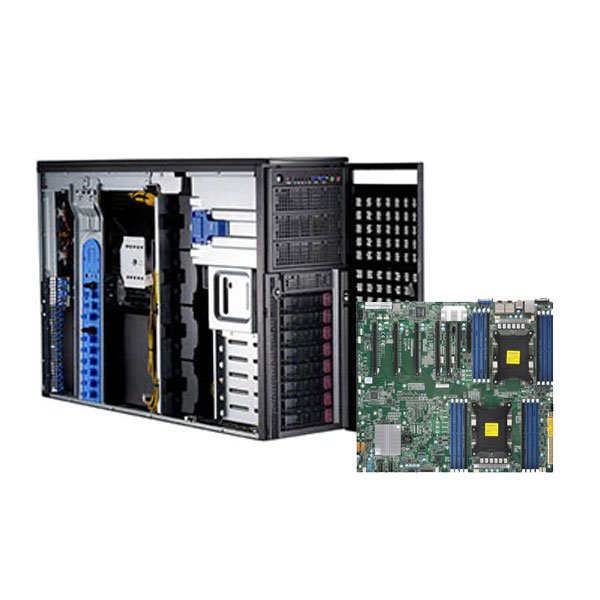

Graphic Server / Workstation 90SGR1G
Product Overviews:
Offers high-performance PCs that are designed to target Graphic Workstations suitable for AI, VDI and Blockchain.
PRIME ABGB Workstations are purpose-built, quiet, energy-efficient and optimised to increase profitability as well as workflow productivity.
Specification :
Form Factor | 2U Chassis |
Chipset | AMD Chipset |
Processor | 1 x Socket SP3 (LGA 4094) Option 1 AMD EPYC™ 7003 Series AMD EPYC™ 7002 Series 3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology AMD EPYC 7713P *1 |
Memory | Total Slots : 8 (8-channel) Capacity : Maximum up to 2048GB RDIMM DDR4 3200 RDIMM 32GB DDR4 3200*2 |
Network Controller | 1 x Dual Port Intel I350-AM2 Gigabit LAN controller 1 x Mgmt LAN |
Storage Controller | Storage Controller : CPU Integrated Optional kits Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card |
Drive Bays | 8 x 3.5″ or 2.5″ Hot-swap Storage Bays (Backplane Supports 6 x SATA/SAS 2 x SATA/SAS/NVMe Devices*) 1 x M.2 socket (Gen4 x4 link, up to 22110 on-motherboard) 960GB Enterprise Class *1 |
Expansion Slots | Rear: – 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards – 2 x PCIe x16 slots (Gen4 x16 link, LP,HL) Front: – SKU-1 (default) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) – SKU-2 (by request) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or 1 x OCP3.0 slot (Gen4 x8 link) by switching cables – SKU-3 (by request) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or 2 x M.2 socket (Gen4 x4 link, up to 22110 module) by switching cables |
Validated GPU / FPGA | A10/A16/A40/A30/A100/RTXA4000/RTX A5000/RTX A6000/V100/T4/M10 A40 48Gb Graphiccard 1nos |
I/O Ports Back | 2 x USB 3.2 Gen1 port 1 x VGA port 1 x Management port (RJ45) 2 x Gigabit LAN ports (RJ45) |
I/O Ports Front | 1 x Q-code/port-80 LED 4 x USB 3.2 Gen1 ports |
System Management | ASUS Control Center Enterprise (in-band) ASMB9-iKVM for KVM-over-IP (out-of-band/BMC AST2500) |
Power Suppply | 1 1 Redundant 1600W 80 PLUS Platinum Power Supply |
Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
Dimensions (DxWxH) | 800mm x 440mm x 88.9mm (2U) |
Estimated Weight | Net Weight: 34 Kg. Gross Weight: 44 Kg. |
OS Support | ESXi 7.0/ RHEL 8.2 /SUSE Enterprise 15 /Ubuntu 18.04 LTS /Windows Server 2019/Windows Server 2022 |
Warranty | 3 year |
Terms & Conditions
- Prices is Inclusive of taxes
- Freight as per actuals
- Warranty 3 year
- Payment 100% advance
- Delivery time 2-4 weeks
- Price as per Current $ price, will change based on Dollar Fluctuation
- Price Valid for 1 weeks
