MSI GeForce RTX 4070 SUPER 12G GAMING X SLIM Graphic Card
Overview :
WITH DLSS 3
Get equipped for supercharged gaming and creating with the NVIDIA® GeForce RTX™ 4070 SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- 2640 MHz / 21 Gbps
- 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Specification :
| MODEL NAME | GeForce RTX™ 4070 SUPER 12G GAMING X SLIM |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 SUPER |
| INTERFACE | PCI Express® Gen 4 |
| CORE CLOCKS | Extreme Performance: 2655 MHz (MSI Center) |
| Boost: 2640 MHz | |
| CUDA® CORES | 7168 Units |
| MEMORY SPEED | 21 Gbps |
| MEMORY | 12GB GDDR6X |
| MEMORY BUS | 192-bit |

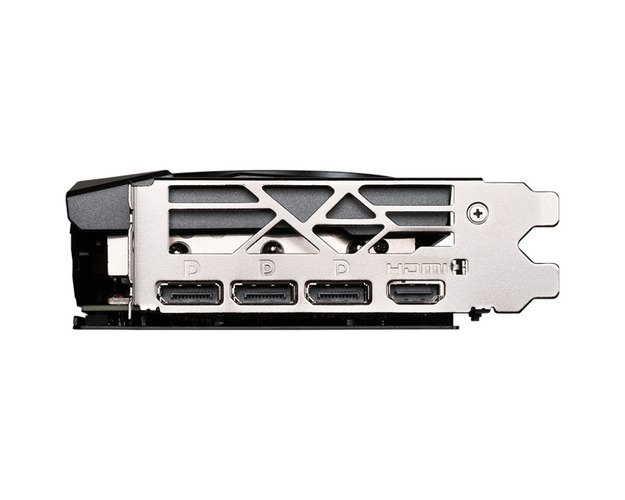

| OUTPUT | DisplayPort x 3 (v1.4a) |
| HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a) | |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 245W |

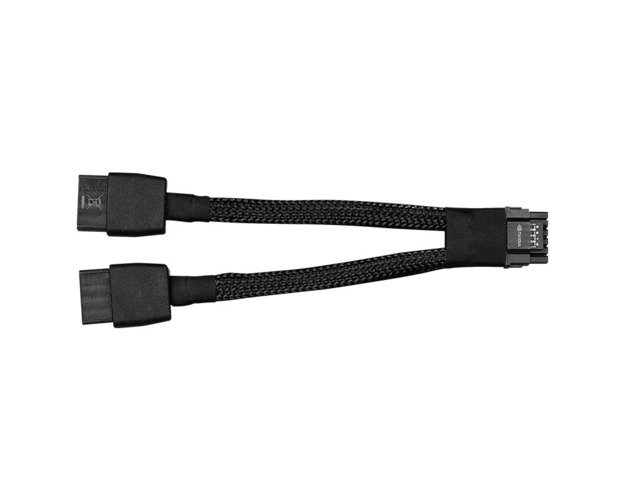

| POWER CONNECTORS | 16-pin x 1 |
| RECOMMENDED PSU | 650 W |
| CARD DIMENSION (MM) | 307 x 125 x 46 mm |
| WEIGHT (CARD / PACKAGE) | 972 g / 1585 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
