NZXT H9 Elite (ATX) Mid Tower Cabinet (White) CM-H91EW-01
Overview :

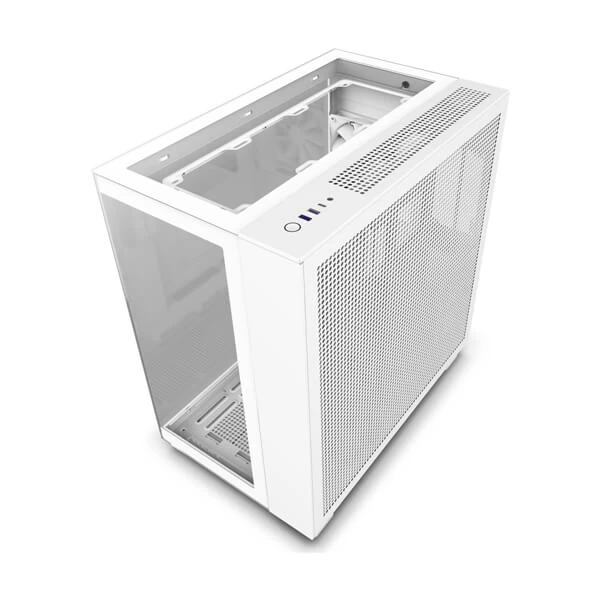

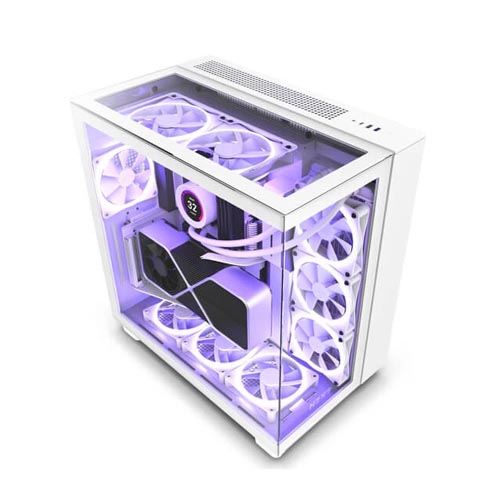

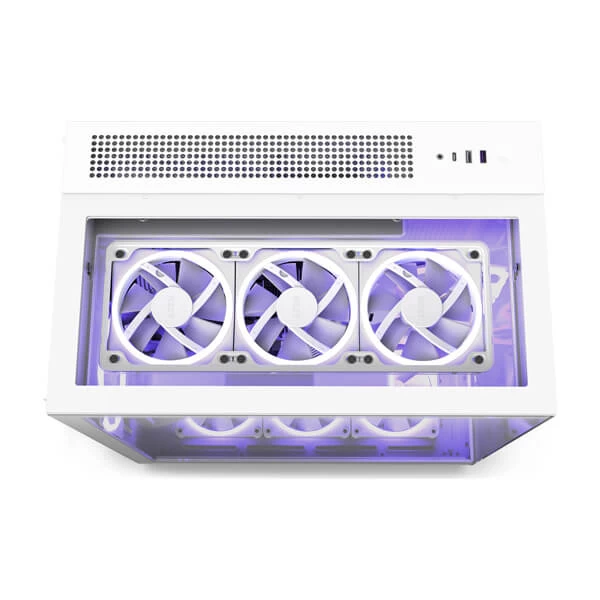

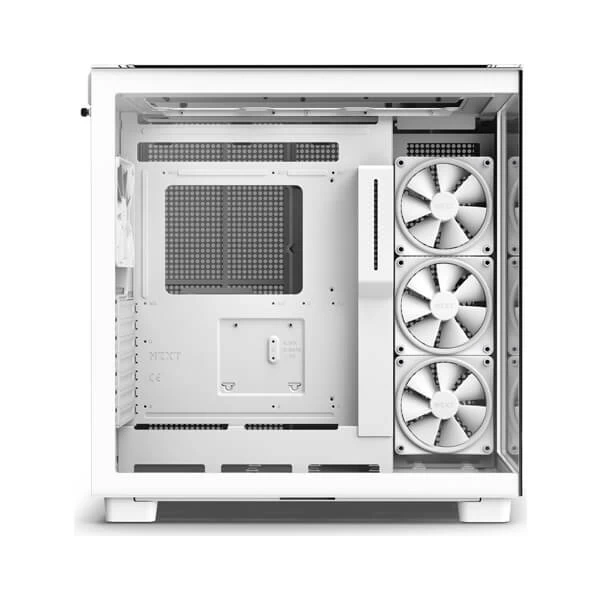

The H9 Elite is designed to show off every angle of your build with a tempered glass top panel and a built-in RGB & Fan Controller. The unique wraparound glass design with a dual-chamber layout is the perfect showcase for premium components.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Tempered glass top panel and included RGB & Fan Controller
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes three F Series 120mm RGB Duo Fans and one F120Q Fan
Specification :
| Key Specs | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Tempered Glass |
| Fan Support | |
| Side | 3 x 120mm |
| Top | 3 x 120mm / 2 x 140mm |
| Bottom | 3 x 120mm / 2 x 140mm |
| Rear | 1 x 120mm |
| Filters | All Air Intakes |
| Dimensions | |
| Height | 495mm (With Feet) |
| Width | 290mm |
| Depth | 466mm |
| Weight | 13.1 kg |
| Radiator Support | |
| Side | Up to 360mm |
| Top | Up to 360mm |
| Bottom | Up to 360mm |
| Rear | Up to 120mm |
| Compatibility & Clearance | |
| CPU Cooler Clearance | Up to 165mm |
| GPU Clearance | Up to 435mm |
| PSU Clearance | 200mm |
| Cable Management | 91mm |
| Fan Specs | |
| Model | F120Q (Case Version) |
| Speed | 1200 ± 240RPM |
| Airflow | 62.18 CFM |
| Static | 1.05 mm – H2O |
| Noise | 25.1 dBA |
| Fan Connector | 3-pin |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Fan Specs | |
| Model | F120RGB Duo |
| Speed | 500 ± 1800RPM |
| Airflow | 48.58 CFM |
| Static | 2.42mm – H2O |
| Noise | 29 dBA |
| Fan Connector | 4-pin |
| Drive Bays | |
| 2.5″ | 4 2 |
| 3.5″ | 2 |
| Warranty | 2 Years |
