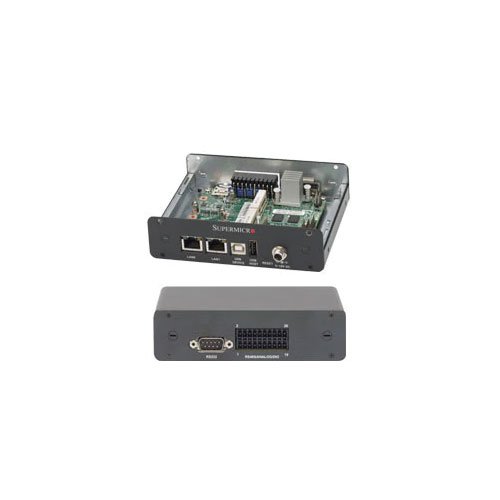

Supermicro A1 Generation Intel Quark Compact Embedded System for Smart Building/Home Gateway and Retail store or Warehouse Hub SYS-E100-8Q
Overview :
1. Single Intel® Quark™ SoC X1021; CPU TDP support 2.2W
2. 1x Micro SDHC up to 32GB internal slot
3. Onboard 512MB DDR3 ECC memory
4. Expansion slots: 2x Mini-PCI-E slots, 1x ZigBee module socket
5. I/O ports: TPM 1.2 onboard Chip, 2x 10/100Mbps RJ45, 1x RS-232 via DB9, 1x RS485 via screw terminal interface, 2x USB 2.0 (device & host), 8x Analog Input 12-bit, 8x DIO 8 bit
6. Power Adapter: 12V DC input
7. Environment operating temperature 0°C to 50°C
Specification :
| Product SKUs | |
| SYS-E100-8Q | SuperServer E100-8Q (Black) |

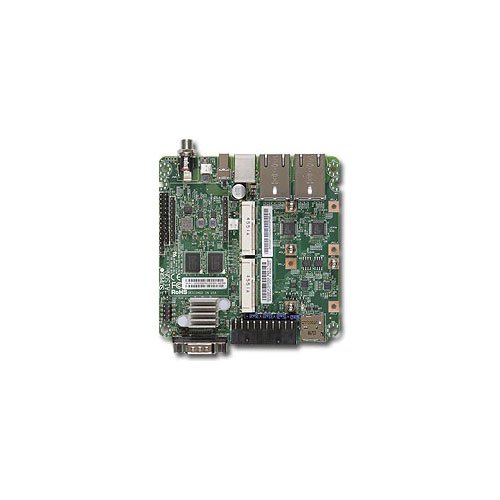

| Motherboard | Super A1SQN |
| Processor/Cache | |
| CPU | Intel® Quark™ SoC X1021 (CPU TDP support 2.2W) |
| Single Socket FCBGA393 | |
| System Memory | |
| Memory Capacity | 512MB of Onboard ECC DDR3 800MHz memory |
| Memory Voltage | 1.5 V |
| On-Board Devices | |
| Chipset | Intel® Quark™ SoC (System on Chip) X1021 |
| USB | Intel® Quark™ SoC X1021 |
| Input / Output | |
| Internal Storage | Micro SDHC up to 32GB slot |
| LAN | 2x 10/100Mbps RJ45 Gigabit Ethernet LAN ports |
| USB | 2x USB 2.0 ports (1 Device & 1 Host) |
| Serial Port / Headers | 1x RS-232 via DB9, 1x RS485 via screw terminal interface |
| Chassis | |
| Form Factor | E100 Compact Box PC |
| Model | CSE-E100-015E |
| Dimensions | |
| Width | 5.3″ (135mm) |
| Height | 1.4″ (36mm) |
| Depth | 4.3″ (109mm) |
| Weight | Gross Weight: 3 lbs (1.4 kg) |
| Net Weight: 0.9 lbs (0.4 kg) | |
| Available Colors | Black |
| Expansion Slots | |
| PCI-E | 2x Mini-PCIe |
| 1x ZigBee module socket | |
| Drive Bays | |
| Internal | Micro SDHC up to 32GB slot |
| Power | 12V DC input |
| System BIOS | |
| BSP | 8MB SPI Flash EEPROM Board Support Package |
| Operating Environment / Compliance | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: |
| 0°C ~ 50°C (32°F ~ 122°F) | |
| Non-operating Temperature: | |
| -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: | |
| 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: | |
| 5% to 95% (non-condensing) |
