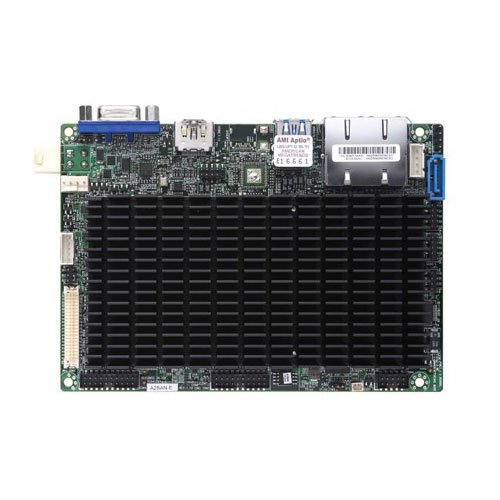

Supermicro A2 Generation Intel Atom E3000 IoT Gateway for Smart for factory/Building/Home SYS-E100-9AP
Overview :
1. Intel® Atom® Processor E3940, Single Socket FCBGA 1296
2. System-on-Chip
3. 1 Full size Mini-PCIe, 1 M.2 2280 B-Key for SATA or PCIe SSD
4. 1 non-ECC DDR3L SODIMM; up to 8GB
5. Dual GbE LAN ports via Intel I210-IT
6. 4 COM, 2 USB 3.0, 4 USB 2.0
7. 1 VGA, 1 HDMI
8. Fanless design
9. Lockable 12V DC 40W power adapter
Specification :
| Product SKUs | |
| SYS-E100-9AP | SuperServer E100-9AP (Black) |
| Motherboard | Super A2SAN-E |
| Processor/Cache | |
| CPU | Intel® Atom® Processor E3940 |
| FCBGA 1296 | |
| System-on-Chip | |
| CPU TDP support 9W | |
| System Memory | |
| Memory Capacity | 1x 204-pin DDR3L SO-DIMM socket |
| Memory Type | 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs |
| DIMM Sizes | 8GB, 4GB, 2GB |
| Memory Voltage | 1.35 V |
| On-Board Devices | |
| Network Controllers | Dual GbE LAN with Intel i210-IT controller |
| Input / Output | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 2 USB 3.0 (front) |
| 4 USB 2.0 (rear) | |
| COM Port | 4 COM ports (4 headers); 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control |
| Video | 1 VGA, 1 HDMI |
| Others | 1 DIO via DB9 |
| Chassis | |
| Form Factor | 3.5″ SBC |
| Model | CSE-E101 |
| Dimensions | |
| Width | 7.68″ (195mm) / 11.81″ (300mm) – pkg. |
| Height | 1.73″ (44mm) / 5.12″ (130mm) – pkg. |
| Depth | 5.94″ (151mm) / 11″ (279mm) – pkg. |
| Available Colors | Black |
| Front Panel | |
| Buttons | Power On/Off button |
| LEDs | Power LED and Hard drive activity LED |
| Expansion Slots | |
| PCI-Express | 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2) |
| Drive Bays | |
| Internal | 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket) |
| System Cooling | |
| Fans | Fan-less design |
| Power Supply | Lockable 12V DC 40W power adapter |
| System BIOS | |
| BIOS Type | 64Mb SPI Flash EEPROM with AMI UEFI BIOS |
| BIOS Features | Plug and Play (PnP) |
| DMI 2.3 | |
| ACPI 5.0 | |
| USB Keyboard support | |
| SMBIOS 2.7.1 | |
| UEFI | |
| Management | |
| Software | SuperDoctor® 5 |
| Watch Dog | |
| Power Configurations | ACPI Power Management |
| ATX Power connector | |
| Control of power-on for recovery from AC power loss | |
| CPU thermal trip support for processor protection | |
| Operating Environment / Compliance | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: |
| -20°C to 60°C (-4°F to 140°F) | |
| Non-operating Temperature: | |
| -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: | |
| 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: | |
| 5% to 95% (non-condensing) | |
| Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis | |
| Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms |
