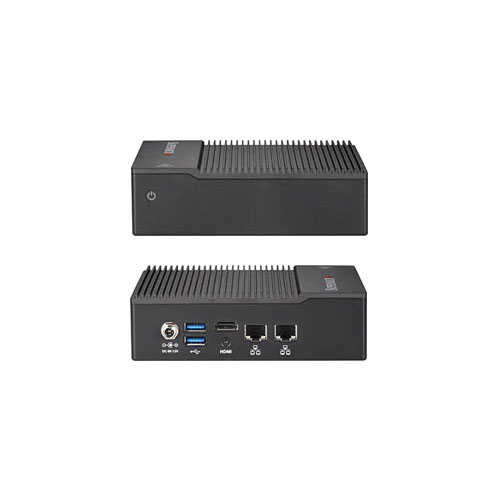

Supermicro A2 Generation Intel Atom E3000 Cost Optimized IoT Gateway for Commercial Appliance SYS-E50-9AP-L
Overview :
1. Intel® Atom® processor E3940 (9.5W, 4C) Single socket FCBGA 1296
2. System on Chip
3. Up to 8GB Unbuffered Non-ECC SO-DIMM, DDR3L-1866MHz, in 1 socket
4. 1 Half size Mini-PCIe, 1 M.2 B-Key 2242 for SATA SSD
5. Dual LAN with Intel I210-IT
6. 2 USB 3.0, 1 HDMI
7. Fanless design
8. Lockable 12V DC 40W power adapter
Specification :
| Product SKUs | |
| SYS-E50-9AP-L | SuperServer E50-9AP-L (Black) |

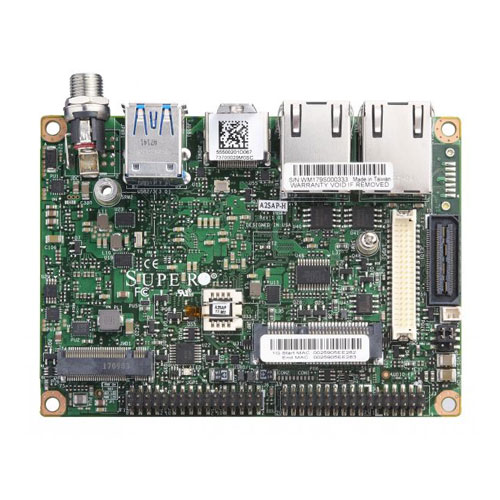

| Motherboard | Super A2SAP-H |
| Processor/Cache | |
| CPU | Intel® Atom® processor E3940 |
| Single socket FCBGA 1296 | |
| 9.5W, 4C | |
| System Memory | |
| Memory Capacity | Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket |
| Memory Type | DDR3L up to 1866MHz |
| DIMM Sizes | 8GB, 4GB |
| Memory Voltage | 1.35 V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210-IT |
| Graphics | Intel® HD Graphics |
| HDMI (max. resolution up to 3840 x 2160 @ 30Hz) | |
| Input / Output | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 HDMI port |
| Chassis | |
| Form Factor | Proprietary |
| Model | CSE-E50-L |
| Dimensions | |
| Width | 5.82″ (148mm) |
| Height | 1.72″ (44mm) |
| Depth | 4.64″ (118mm) |
| Package | 5.5″ (H) x 9.5″ (W) x 8″ (D) |
| Weight | Gross Weight: 3.52 lbs (1.6 kg) |
| Net Weight: 2.2 lbs (1 kg) | |
| Available Colors | Black |
| Front Panel | |
| Buttons | Power On/Off button |
| LEDs | Power LED (Hard drive activity LED) |
| Expansion Slots | |
| PCI-Express | 1 Half size Mini-PCIe |
| M.2 | 1 M.2 B-Key 2242 for storage (SATA SSD) |
| System Cooling | |
| Fans | Fanless design |
| Power Supply | 40W lockable 12V DC power adapter |
| System BIOS | |
| BIOS Type | AMI UEFI |
| Management | |
| Software | SuperDoctor® 5 |
| Watch Dog | |
| Power Configurations | 12V DC Power Input |
| ACPI Power Management | |
| Control of power-on for recovery from AC power loss | |
| Force Power On by Jumper | |
| Operating Environment / Compliance | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: |
| -20°C to 50°C (-4°F to 122°F) | |
| Non-operating Temperature: | |
| -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: | |
| 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: | |
| 5% to 95% (non-condensing) |
