Supermicro A2 Generation Intel Atom E3000 Embedded Applications SYS-E102-9AP-L
Overview :
1. Intel® Atom® processor E3930 (6.5W, 2C) Single socket FCBGA 1296
2. System on Chip
3. 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E
4. Up to 8GB unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 socket
5. Dual GbE LAN w/ Intel i210IT
6. 4 COM (RS-232/422/485), 2 USB 3.0
7. 1 VGA port, 1 HDMI port
8. Passive CPU heat sink and 1x 40mm chassis fans
9. Lockable 12V DC 40W power adapter
Specification :
| Product SKUs | |

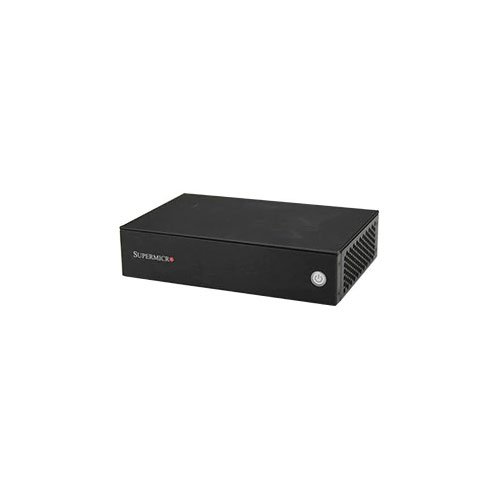

| SYS-E102-9AP-L | SuperServer E102-9AP-L (Black) |

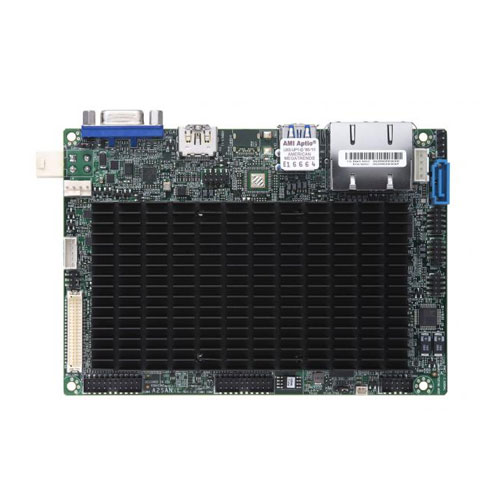

| Motherboard | Super A2SAN-LÂ |
| Processor/Cache | |
| CPU | Intel® Atom® Processor E3930 |
| Single Socket FCBGA 1296 supported | |
| CPU TDP support 65W | |
| Cores / Cache | 2 cores, 2 threads |
| System Memory | |
| Memory Capacity | Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM slot |
| Memory Type | DDR3L up to 1866MHz (8GB) |
| DIMM Sizes | 8GB, 4GB, 2GB |
| Memory Voltage | 1.35V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Controllers | Dual LAN with Intel® I210IT |
| Audio | ALC 888S HD Audio |
| Video | Intel® HD Graphics 620 |
| Input / Output | |
| USB | 2 USB 3.0 |
| Video Output | 1 VGA port |
| 1 HDMI port | |
| COM Port | 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control (optional) |
| Audio | 1 HD Audio header (Mic-in/Line-Out) |
| Chassis | |
| Form Factor | 3.5″ SBC |
| Model | CSE-E102Â |
| Dimensions | |
| Width | 7.48″ (190mm) / 11.81″ (300mm) – pkg. |
| Height | 1.72″ (44mm) / 5.12″ (130mm) – pkg. |
| Depth | 4.72″ (120mm) / 11″ (279mm) – pkg. |
| Weight | Net Weight: 2.65 lbs (1.2 kg) |
| Available Colors | Black |
| Front Panel | |
| Buttons | Power On/Off button |
| LEDs | Power LED and Hard drive activity LED |
| Expansion Slots | |
| PCI-Express | 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2) |
| M.2 | Interface: SATA, PCIe 2.0 x1 and USB 2.0 |
| Form Factor: B-Key 2280 | |
| Drive Bays | |
| Internal | 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket) |
| 1 SATA 3.0 for 2.5″ 7mm SATA HDD/SSD | |
| System Cooling | |
| Fans | 1x 40mm chassis fan |
| Heat Sink | Passive CPU heat sink |
| Power Supply | Lockable 12V DC 40W power adapter |
| System BIOS | |
| BIOS Type | AMI UEFI |
| Management | |
| Software | SuperDoctor® 5 |
| Watch Dog | |
| Power Configurations | 12V DC Power Input |
| ACPI Power Management | |
| Control of power-on for recovery from AC power loss | |
| Force Power On by Jumper | |
| CPU thermal trip support for processor protection | |
| Operating Environment / Compliance | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: |
|   0°C to 40°C (32°F to 104°F) | |
| Non-operating Temperature: | |
|   -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: | |
| Â Â 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: | |
| Â Â 5% to 95% (non-condensing) |
