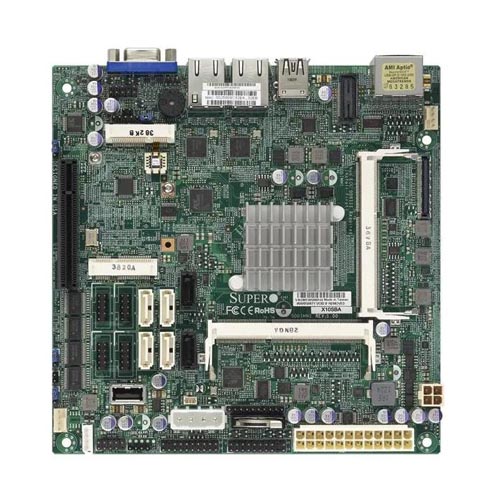

Supermicro X10SBA Motherboard Mini-ITX Intel J1900 Celeron MBD-X10SBA-O
Overview :
Motherboard Mini-ITX Intel J1900 Celeron Processor, System on Chip – Supports up to 8GB DDR3 up to 1333MHz (2x 204-pin SO-DIMM Socket) – Onboard : SATA-600 Controller via Marvell 88SE9230, SATA-300 Controller via Intel SoC, Intel i210AT 2x Gigabit Ethernet, HD Audio 7.1 channel connector by Realtek ALC888S-VD2, Intel HD Graphics with HDMI / Display port / eDP and VGA, 1x DOM (Disk-on-Module) Power Connector Support, 4x COM Ports – MBD-X10SBA-O (Retail Box)
Specification :
| System Memory | |
| DIMM Sizes | 2GB, 4GB |
| Memory Capacity | Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1333MHz, in 2 DIMM slots |
| 2x 204-pin SO-DIMM socket ; | |
| 8GB with 2x 4GB SODIMM configuration Some 1600MHz memory can be used, but memory capacity will operate at 1333MHz | |
| Memory Type | 1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs |
| Memory Voltage | 1.35V |
| On-Board Devices | |
| Chipset | Intel® J1900 System on Chip |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210-AT |
| SATA | Marvel 88SE9230 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,10 |
| SoC controller for 2 SATA2 (3 Gbps) ports; | |
| Audio | ALC 888S HD Audio |
| Graphics | Intel® HD 4000 Graphics |
| Input / Output | |
| SATA | 4 SATA3 (6Gbps) port |
| 2 SATA2 (3Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 5 USB 2.0 ports (1 rear + 3 headers + 1 Type A) |
| 1 USB 3.0 ports (1 rear); | |
| USB 3.0: Intel� SoC | |
| Video Output | 1 HDMI port, 1 DP (DisplayPort) port, 1 VGA port |
| Serial Port / Header | 4 COM Ports (4 headers) 4 fast UART 16550 serial |
| TPM | 1 TPM Header |
| System BIOS | |
| BIOS Features | SMBIOS 2.7.1 |
| ACPI 5.0 | |
| USB Keyboard support | |
| Plug and Play (PnP) | |
| DMI 2.3 | |
| RTC (Real Time Clock) Wakeup | |
| UEFI 2.3.1 | |
| 3TB HDD Support | |
| BIOS Type | AMI UEFI |
| Product SKUs | |
| Product SKUs | |
| Physical Stats | |
| Form Factor | Mini-ITX |
| Dimensions | 6.7″ x 6.7″ (17.02cm x 17.02cm) |
| Processor/Cache | |
| CPU | Intel® Celeron® Processor J1900. |
| Single Socket FCBGA1170 supported, CPU TDP support Up to 10W TDP | |
| 2M Cache, up to 2.42 GHz, 8W (formerly Bay Trail) | |
| Cores / Cache | 4 cores, 4 threads / 2MB L2 cache |
| Expansion Slots | |
| PCI-E | 1 PCI-E 2.0 x2 |
| 1 Mini-PCI-E slot, 1 mSATA slot | |
| Management | |
| Software | NMI, SuperDoctor® 5, Watchdog |
| Power Configurations | Main Switch Override Mechanism |
| Power-on mode for AC power recovery | |
| ACPI Power Management | |
| Keyboard Wakeup from Soft-Off | |
| PC Health Monitoring | |
| Voltage | +3.3V, +5V, Memory, Memory Voltages, System level control, System temperature |
| FAN | 2x 4-pin fan headers (up to 2 fans), Fan speed control, Low noise fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for speed control, System level control, Thermal control tachometer fan connectors |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support |
| LED | CPU / System Overheat LED, Standby alert LED |
| Other Features | 12V DC or ATX Power Source, 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, System level control, WOL |
| Operating Environment | |
| Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) |
| Non-Operating Temperature Range | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Relative Humidity Range | 10% ~ 85% (non-condensing) |
| Non-Operating Relative Humidity Range | 10% ~ 95% (non-condensing) |
