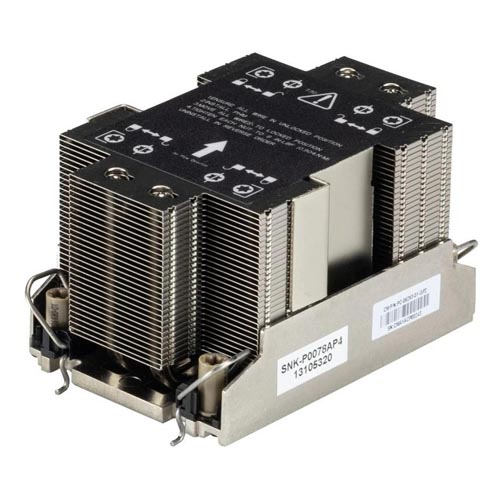

Supermicro SNK-P0078AP4 2U Active CPU Heatsink for X12 Gen Systems
Overview :
Active Heatsink 2U, Designed for Supermicro X12 FatTwin Generation Systems, Equipped with 3rd Generation Intel Xeon Scalable Processors with Socket FCLGA4189 – RoHS and REACH compliant
Specification :
| Main Specifications | |
| Device Type | CPU Heat Sink |
| Form Factor | 2U Form Factor |
| Cooling Type | Active |
| CPU Configuraton | Uni Processor, Dual Processor |
| Supported CPUs | 3rd Gen Intel Xeon Scalable Processors |
| Supported CPU Socket | FCLGA4189 |
| Attached Cooling Fan | Speed Control: 4-pin PWM |
| Rated Voltage: 12.0 VDC | |
| Rated Speed: 10,000 RPM | |
| Acoustic Noise: 57.5 dB(A) at Rated Speed | |
| Fan Dimensions: 60L x 60H x 25D (mm) | |
| Position: Middle | |
| MTBF/MTTF: 198,425 Hours at 40 OC Ambient | |
| Miscellaneous | |
| Compatible With | Designed for certain X12 generation systems equipped with 3rd Generation Intel Xeon Scalable Processors |
| Compliant Standards | RoHS and REACH compliant |
